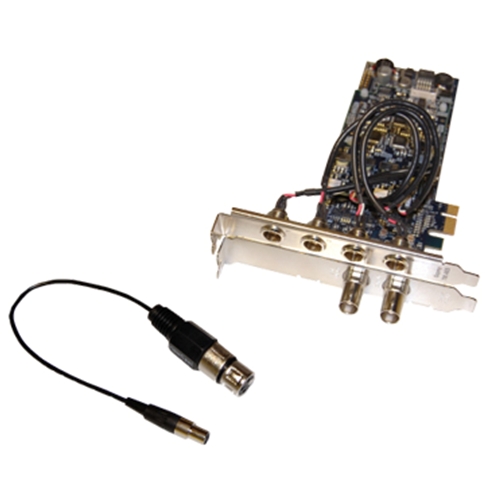

ViewCast Osprey 710e HD

Professional quality HD streaming performance.

Osprey video technology sets the industry standard for high-quality, rock-solid streaming performance. Utilized in a wide variety of applications – from aerospace to surveillance, Internet TV to webcasting – Osprey video capture cards drive the delivery of video to viewers all around the globe. The Osprey 710e HD continues that strong tradition of high-quality streaming performance.

Designed for professional video applications.

The Osprey 710e HD features a high-definition SDI video input, with an additional SDI/BNC loop-out pass through to facilitate workflow. In addition to 16 channels of embedded SDI audio (8 stereo pairs), the Osprey 710e HD includes 4 stereo pairs of AES/EBU digital audio inputs implemented across mini XLR connectors, providing maximum audio flexibility.

Optimized for live streaming.

Take advantage of advanced video pre-processing features such as logo/bitmap overlay with transparency and positioning controls, de-interlacing, color space conversion and closed-caption extraction and rendering. The Osprey 710e HD will automatically detect and adapt on-the-fly when the input video format changes from SD to HD. Wide screen signaling is also standard. We’ve also added the broadcaster-requested feature – loss of video detection – which lets you automatically substitute internally generated NTSC color bars with an optional text
overlay.

Multi-platform delivery.

The Osprey 710e HD includes our SimulStream® technology that allows you to stream to multiple devices – in various formats, bit rates and resolutions – simultaneously, from a single video source. The Osprey 710e HD is the ideal HD solution to meet the demands of today’s multi-platform digital media marketplace.

Driver Support:

• Microsoft® DirectShow® API

Inputs:

Audio:

Loop Outputs:

Audio:

Connectivity:

Pre-Processing:

• Closed-caption extraction / rendering
• Logo/bitmap overlay
• Scaling, cropping, de-interlacing and inverse telecine
• Loss of video automatic test pattern generation with text overlay option

Dimensions:

• Half-height / half-length board
• 6.60” L x 2.71” H (16.77 cm L x 6.89 cm H)
• Includes low-profile brackets (low profile AES option
  requires 2 brackets) (included)

Hardware Warranty:

• 1 year limited hardware warranty

System Requirements:

• Video capture requires intense bandwidth across the
  system bus, CPU, and memory. North Bridge PCIe
  slots are strongly recommended.
• Multi-core processors (4 or more) are recommended
  to run video applications.
