Kramer VS-848

Overview

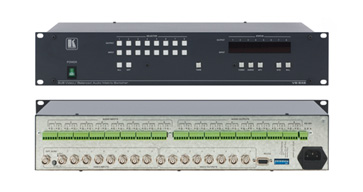

The VS-848 is a 8x8 vertical interval matrix switcher; it features composite video and balanced stereo audio. It is a true matrix switcher able to breakaway audio signals and operate from a remote location.

Ture MatrixTrue matrix allows the user to route any input to any or all outputs simultaneously.Vertical Interval SwitchingVertical Interval Switching enables glitch free switching when sources are referenced to the same sync signal.Breakaway AudioThe audio inputs can be switched independantly from the corresponding video signal.PresetsEight preset memory locations are provided for quick access to common switching configurations.RS-232Switching functions can be accessed via RS-232 remote control.RackmountableThis unit was designed to fit into exsisting studio rack spaces without extraneous equipment.

Specifications

Input	Composite Video x8, 1 Vpp @ 75 ohms, on BNC connectors Balanced Stereo Audio x8, @ 33K ohms, on detatchable terminal blocks External Sync, 1 Vpp @ 75 ohms, on a BNC connector RS-232, on a 9-Pin connector
Output	Composite Video x8, 1 Vpp @ 75 ohms, on BNC connectors Balanced Stereo Audio x8, @ 50 ohms, on detatchable terminal blocks
Switch Type	Vertical Interval
Video Bandwidth	200 MHz
Differential Gain	0.05%
Differential Phase	0.03°
Video Signal-to-Noise Ratio	74 dB
Audio Bandwidth	100 kHz
Signal to Noise Ratio	84 dB
Audio THD	0.025%
Control	Front Panel: Input Select Take Video or Audio Select Memory Store Recall Rear Panel: Sync Select Dip Switches
Power Source	115 to 230 VAC @ 50/60 Hz
Dimensions (WxDxH)	19 x 7 x 3.50" 48.26 x 17.78 x 8.9cm
Weight	7.8 lbs 3.5 kg
